- Linear table for fast positioning
- Integrated Aluminium roller guide

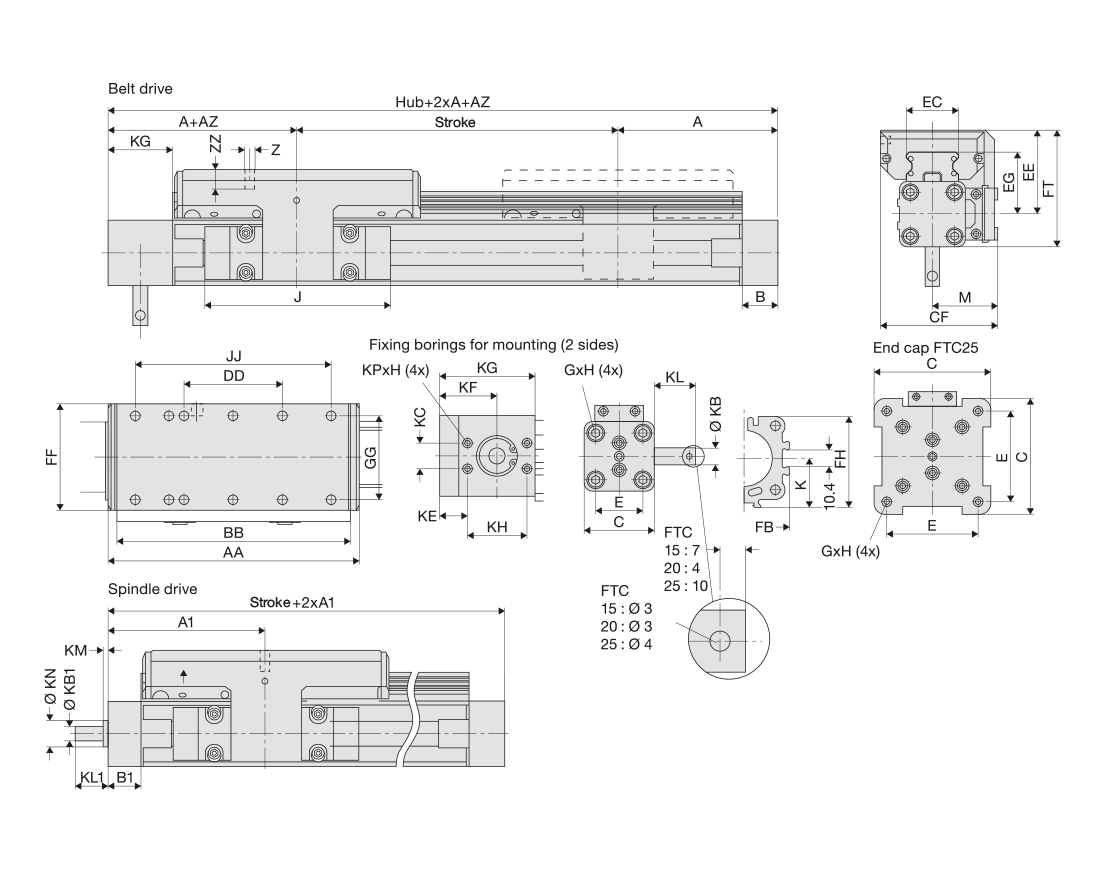

- Belt Drive

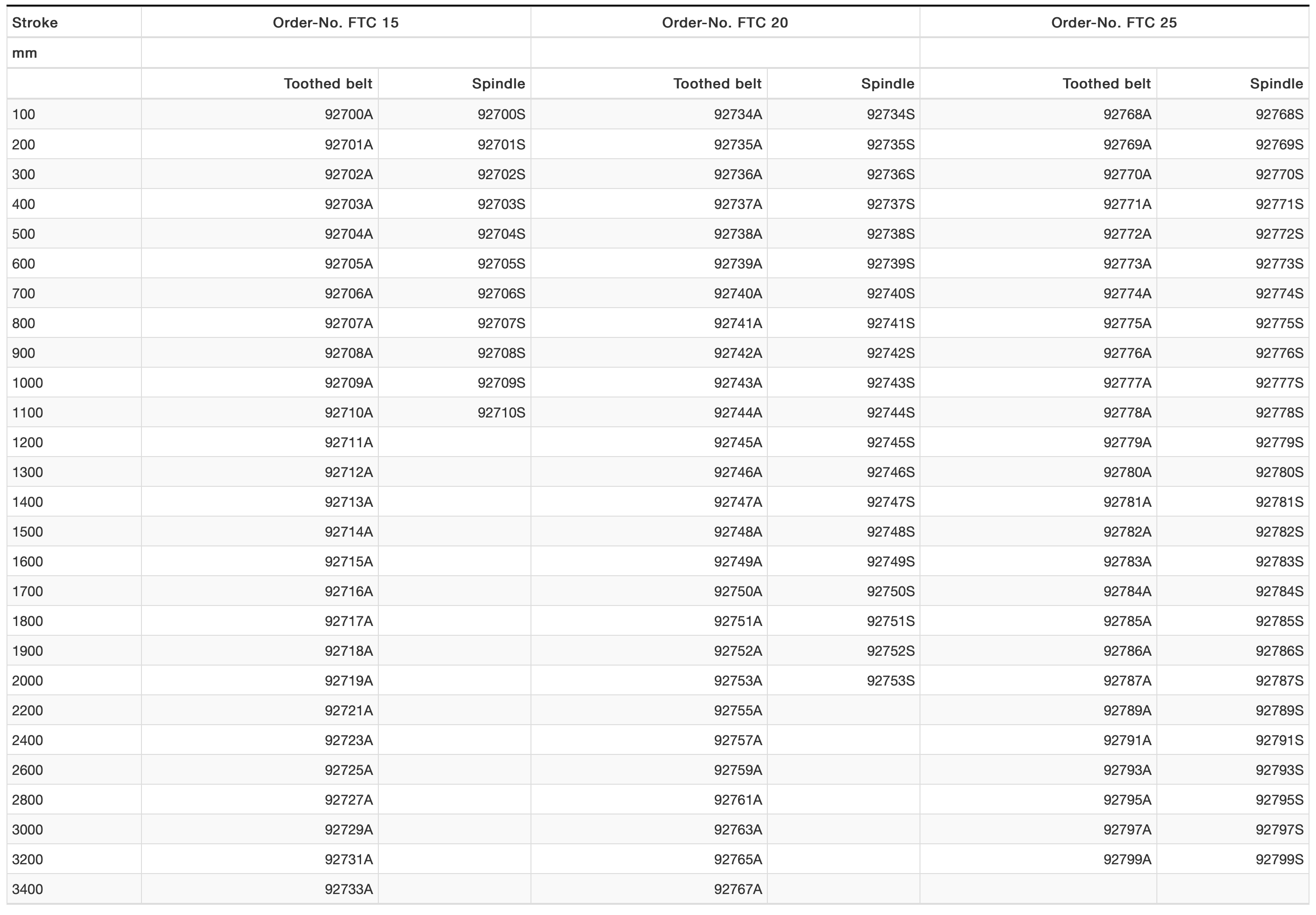

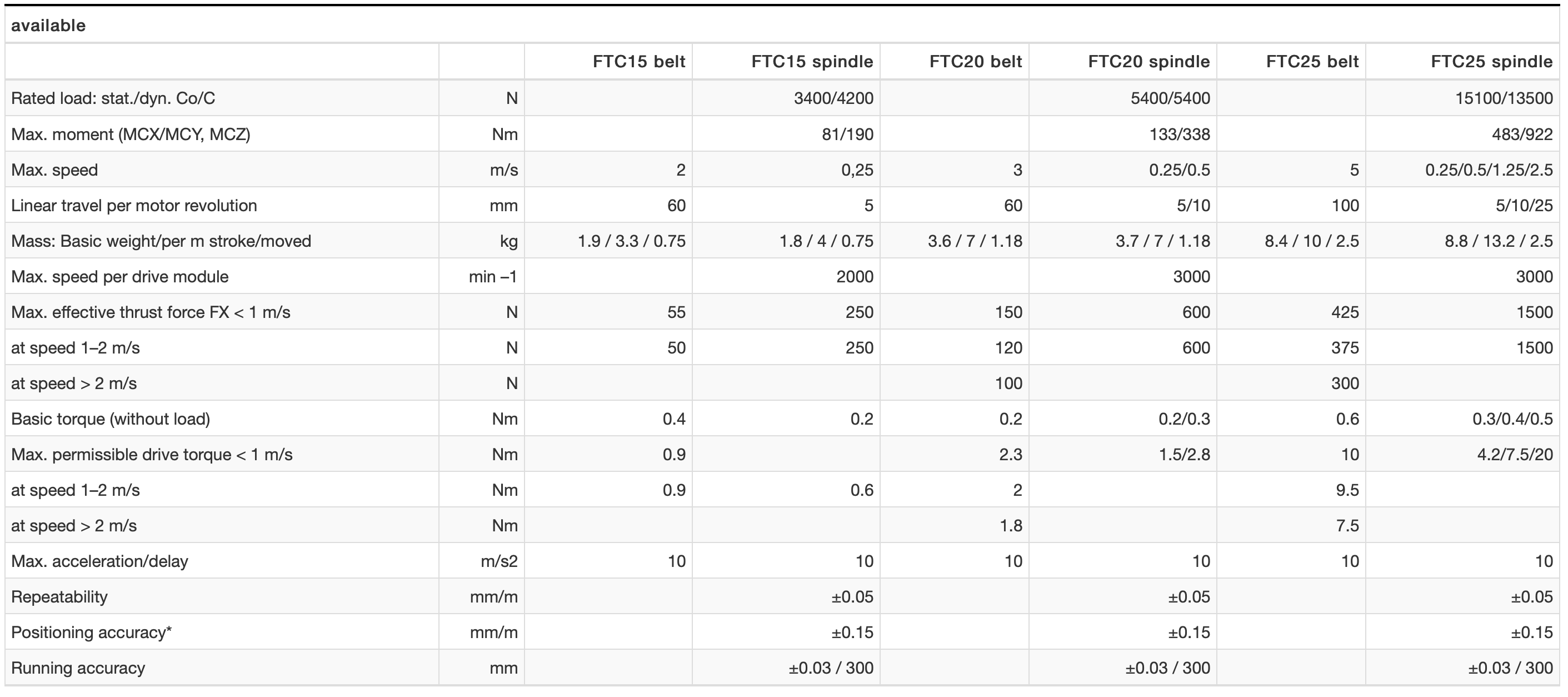

- Infinitely variable from 100 to 3400 mm

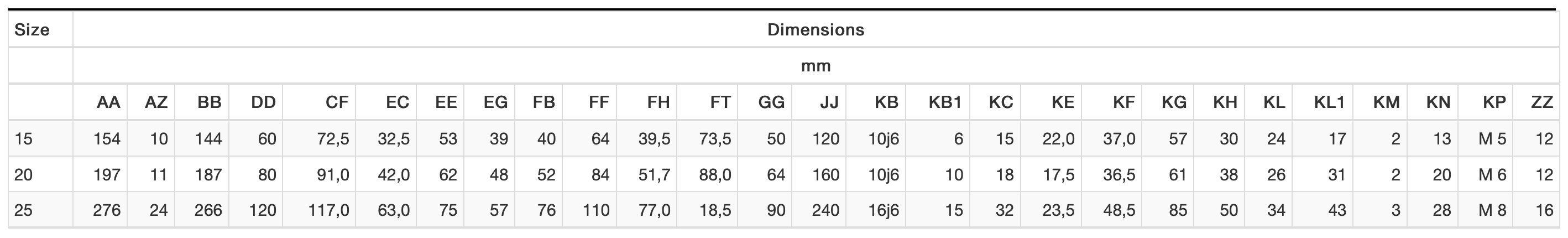

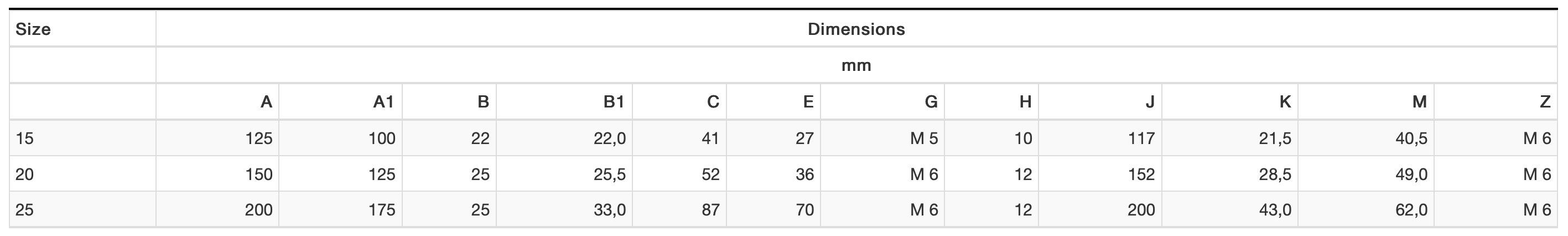

Clamping with star grip
Cassette with star grip to attach to any position on the rail guide. The clamping does not exert force on the rail system. It is used for appliances that can be operated manually, clamping and holding stops, provision of tools and processing components.
Clamping with clamp lever
Cassette with clamp lever to attach to any position on the rail guide. The clamping does not exert force on the rail system. It is used for appliances that can be operated manually, clamping and holding stops, provision of tools and processing components.
Screw connection from below
Cassettes, modified for screwing from below. In this variant, the existing mounting holes are partially reworked so that a screw connection from below is possible. Please note possible deviating positions and bolting sizes.
The metal wipers are placed in the wiper plate along with the felt wipers and clipped on there. They are used to remove coarse dirt such as metal shavings, welding spatter and wood dust.
The bellows for aluminium roller guides protect the rail system against coarse dirt. They are available in any lengths. The applied Velcro patches are used for attaching to the cassette and end plate. The cassette wipers are no longer needed. Material: synthetic fabric with one-sided polyurethane coating; temperature: contact heat +80 °C, radiant heat +120 °C.
The stop screws are screwed into the thread (option) on the guide rails. A fitted rubber cap dampens impact. We deliver the drilling template displaced by one half bore gap for rail lengths with initial drilling dimensions below L11 min. Material: Chlorbutadiene rubber (Cr), black.
In order to ensure that the wipers function ideally, the bores on the guide rails should be sealed using plastic caps enlosed with the delivery. You can order replacements individually. Material: POM wear-proof plastic, resistant to oil and ageing.
Fastener for linear modules type FTC/FTD
Intermediate Drive Shaft
